Kryten PIV
The images are then processed to measure the velocity within the flow. Further processing provides flow vertices, iso-speed lines, streamlines, and flow field parameters distribution. The system usually consists of a CCD or CMOS camera, a strong laser, and a synchronizer that provides triggering for the camera and laser. A powerful software by Microvec is used for the calculations.
Microvec PIV software, developed for over 20 years, features advanced algorithms and techniques for high-precision analysis:
❖ Cross correlation with FFT and IFFT
❖ Sub-pixel precision fitting
❖ Bias vector detection and correction
❖ Window deformation iterative multi-grid
❖ Multi-zone data stitching
❖ Particle Tracking Velocimetry (PTV) with blob analysis
❖ Temperature and concentration analysis in fluids
❖ Dynamic masking
❖ Kinetic energy and Reynolds stress
❖ Multi-core parallel processing
❖ Uncertainty quantification
❖ GPU acceleration
❖ Flexible methods for image pre-processing
❖ New AI PIV based on Neural Networks

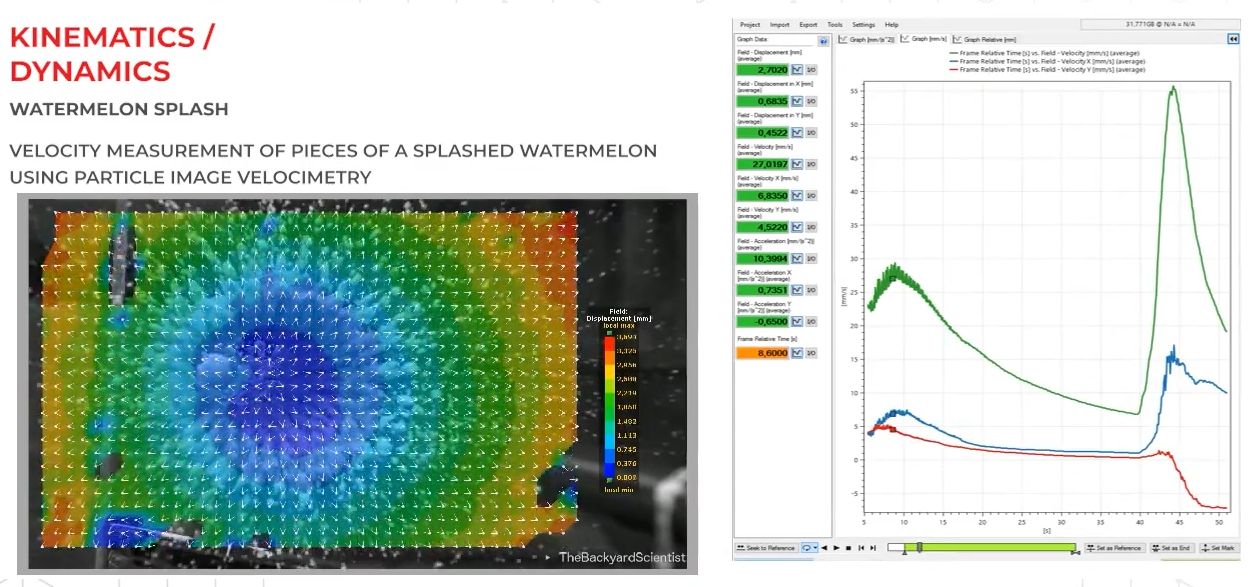

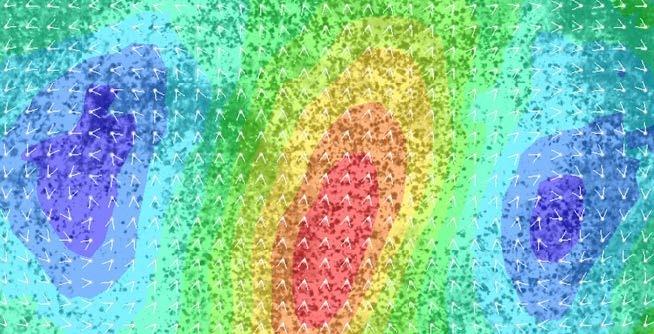

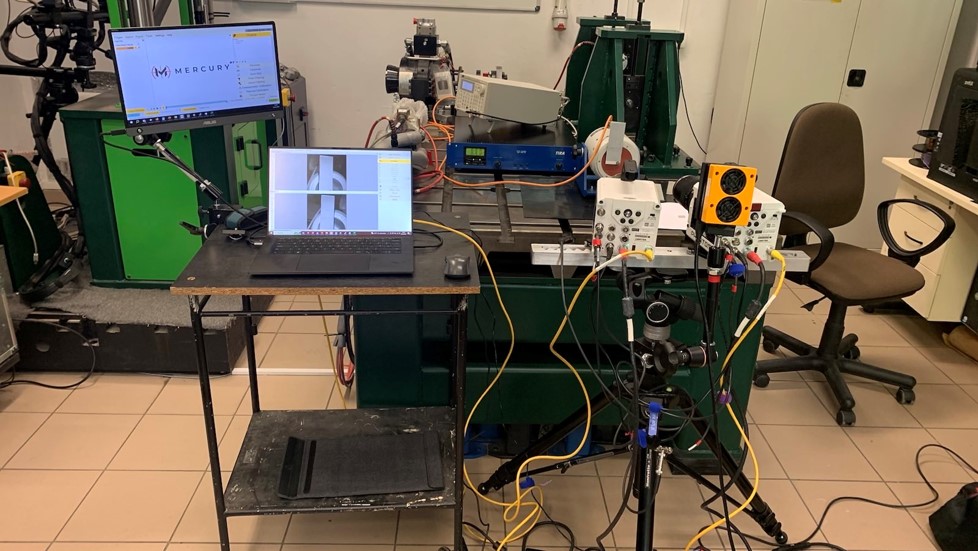

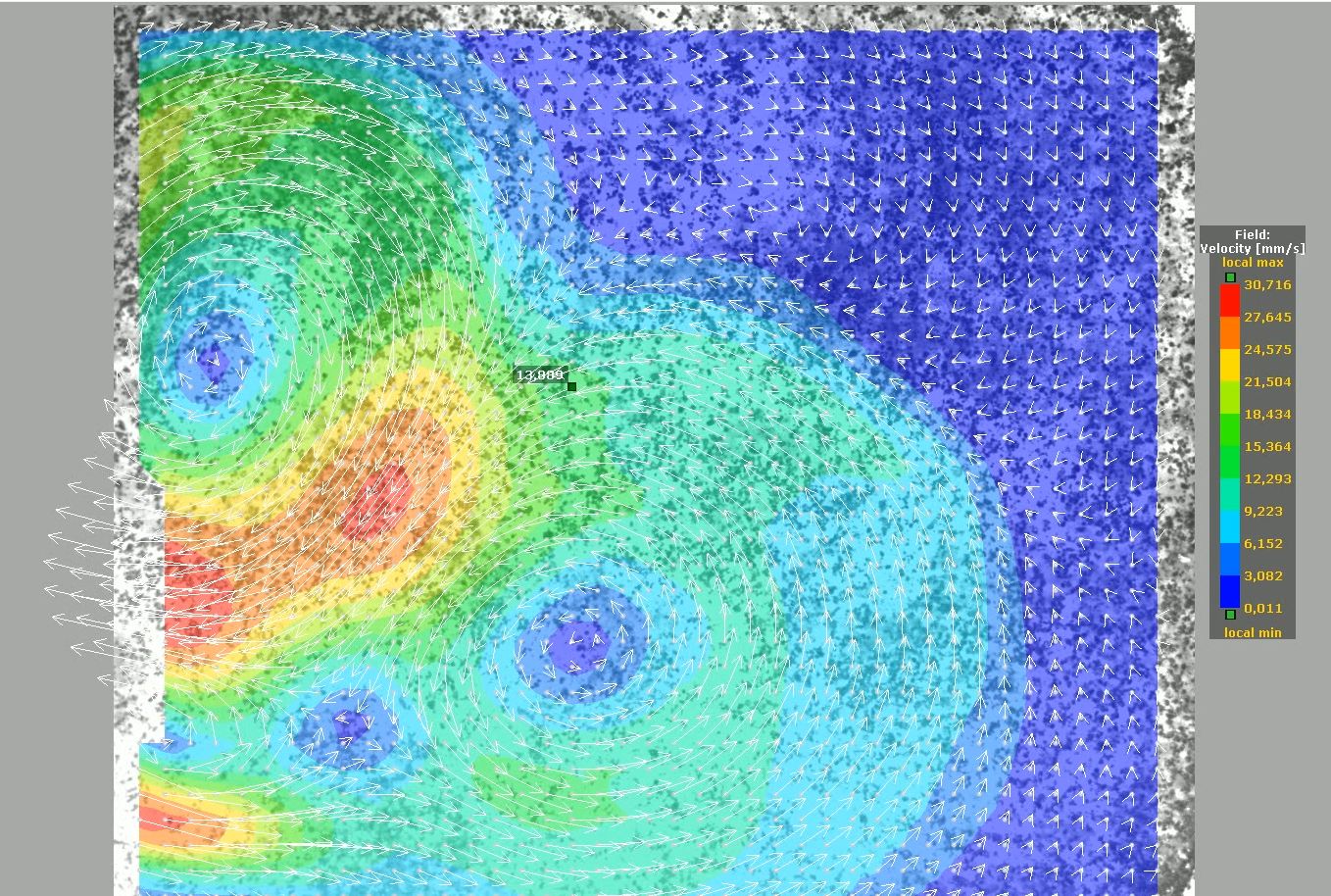

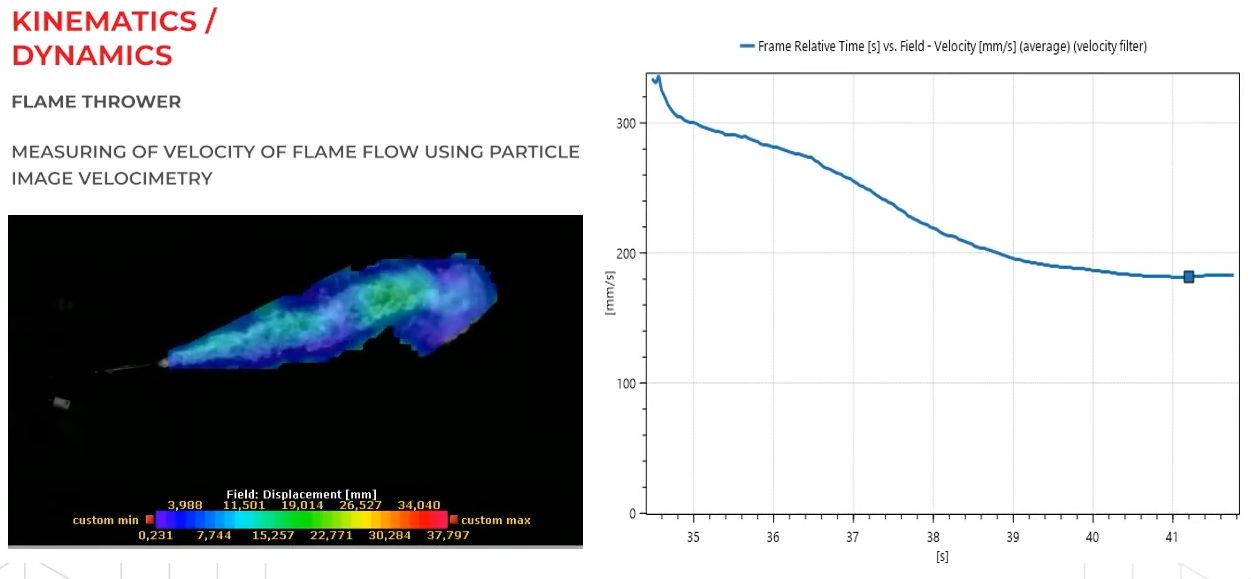

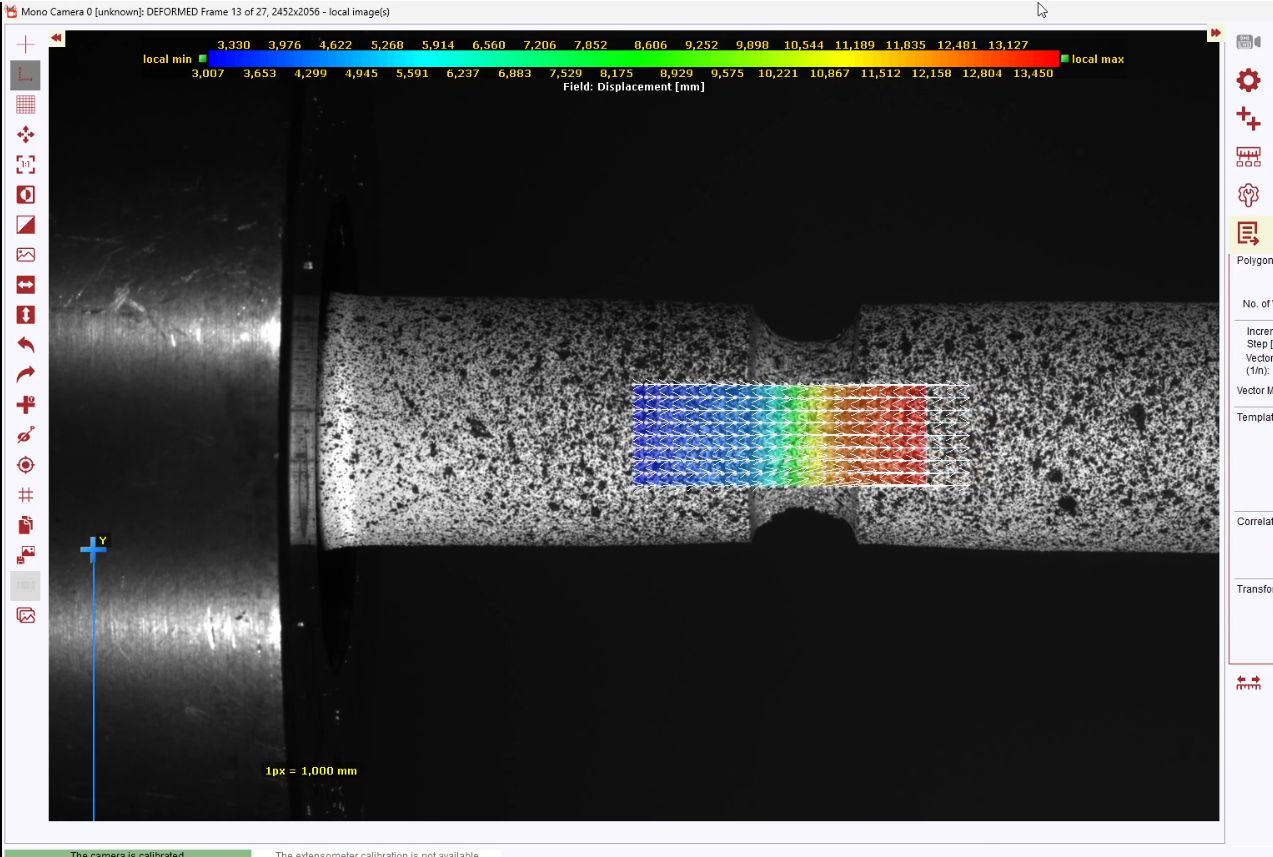

Gallery
